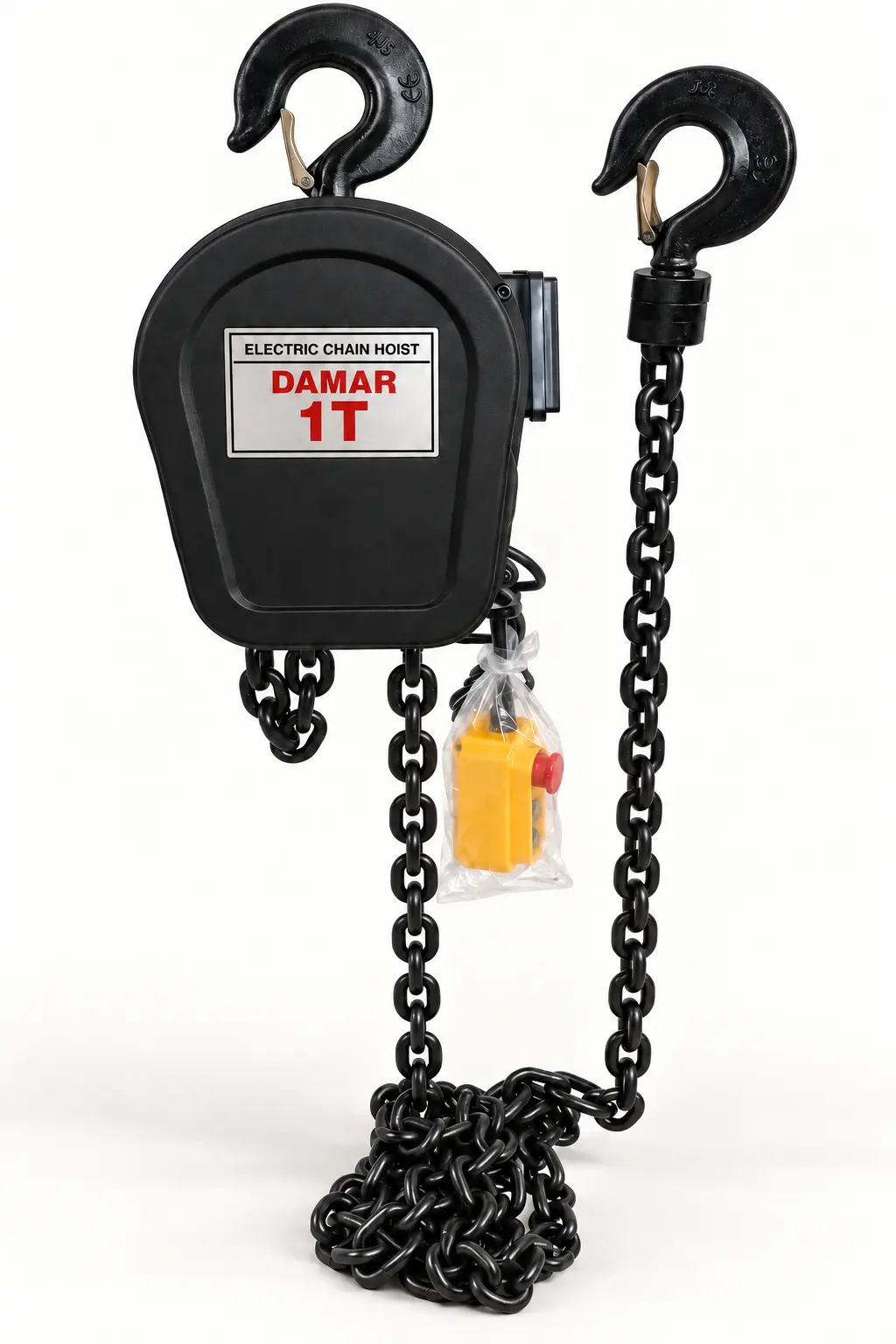

DAMAR Electric Chain Hoist — Three Phase
Price on Request
Selected configuration: 1 ton
Product Details
- Capacity (ton)
- 1
- Lifting Speed (m/min)
- 6.8
- Power (kW)
- 1.5
- Phase
- 3
- Voltage (V)
- 220–440
About This Item
- A three-phase lifting solution for precision handling, assembly and regular workshop lifting, designed to turn repetitive load movement into a faster and more controlled process.
- The load-chain format provides compact headroom and direct vertical lifting, making it highly useful above workstations, machines and assembly areas.
- Its 1.5 kW copper-wound motor runs at 1,440 rpm and delivers a purposeful 6.8 m/min lifting speed, combining muscular performance with controlled load movement.
- Three-phase operation makes this hoist a natural fit for industrial facilities that need reliable power delivery for regular material handling.
- A strong steel housing, heat-treated high-grade load chain, hardened gearing and forged steel hooks give the hoist durable, confidence-inspiring construction.
Product Description
DAMAR three-phase electric chain hoists are listed in 1, 2, 3 and 5 ton configurations for vertical material lifting in industrial, production and maintenance applications. Select a capacity to review its photographs and specification rows. Confirm the required lift, lifting speed, power supply and suspension arrangement when enquiring. The Heavy Duty range is listed separately for comparison; confirm the exact model specifications before ordering. Not intended for lifting people.
Images are illustrative, and specifications may change. Please obtain written confirmation of all important specifications before ordering. Read the Product & Safety Disclaimer.
Specifications
1 ton
| Capacity (ton) | Lifting Speed (m/min) | Power (kW) | Rotation Speed (r/min) | Phase | Voltage (V) | Frequency (Hz/s) |
|---|---|---|---|---|---|---|
| 1 | 6.8 | 1.5 | 1440 | 3 | 220–440 | 50 |
Supply & certificates
Manufacturer’s test certificates are supplied with all products. Government-approved test house certificates for wire rope slings and chain slings can be arranged at an additional charge. This requirement must be specified when placing the order; requests cannot be accommodated after the slings have been manufactured and dispatched.
We are wholesale distributors supplying across India. Spare parts are available for selected products. We do not provide repairs, servicing or technical assistance.
No warranty or guarantee is offered. This does not exclude rights that apply under applicable law.
