DAMAR PA 500 Mini Electric Hoist — 20 m
Price on Request
Selected: PA 500 — 20 MTR
Product Details
- Specification / Hoist Model
- PA 500 - 3HP
- Method of Use
- 250 kg – Single-hook / 500 kg – Double-hook
- Rated Voltage (V)
- 220 / 230
- Input Power (W)
- 900
- Rated Lifting Weight (kg)
- Single-hook: 250 / Double-hook: 500
- Lifting Speed (m/min)
- Single-hook: 10 / Double-hook: 5
- Lifting Height (m)
- Single-hook: 20 / Double-hook: 10
- Wire Rope Diameter (mm)
- 6
About This Item
- A practical electric lifting solution for compact, lighter-duty lifting, combining useful lifting reach with a space-saving format.
- Single-line and double-line operation gives users a valuable choice between faster handling and greater lifting capability for the job at hand.
- A 900 W copper-wound motor gives the PA 500 a strong, efficient drive package, with dependable power delivery for frequent workshop lifting.
- Electric operation reduces repeated manual effort and helps make routine lifting and positioning more efficient for the operator.
- Its heat-treated steel load components, 6 mm steel wire rope and generously sized drum support smooth winding, disciplined rope lay and a reassuringly solid build.
Product Description

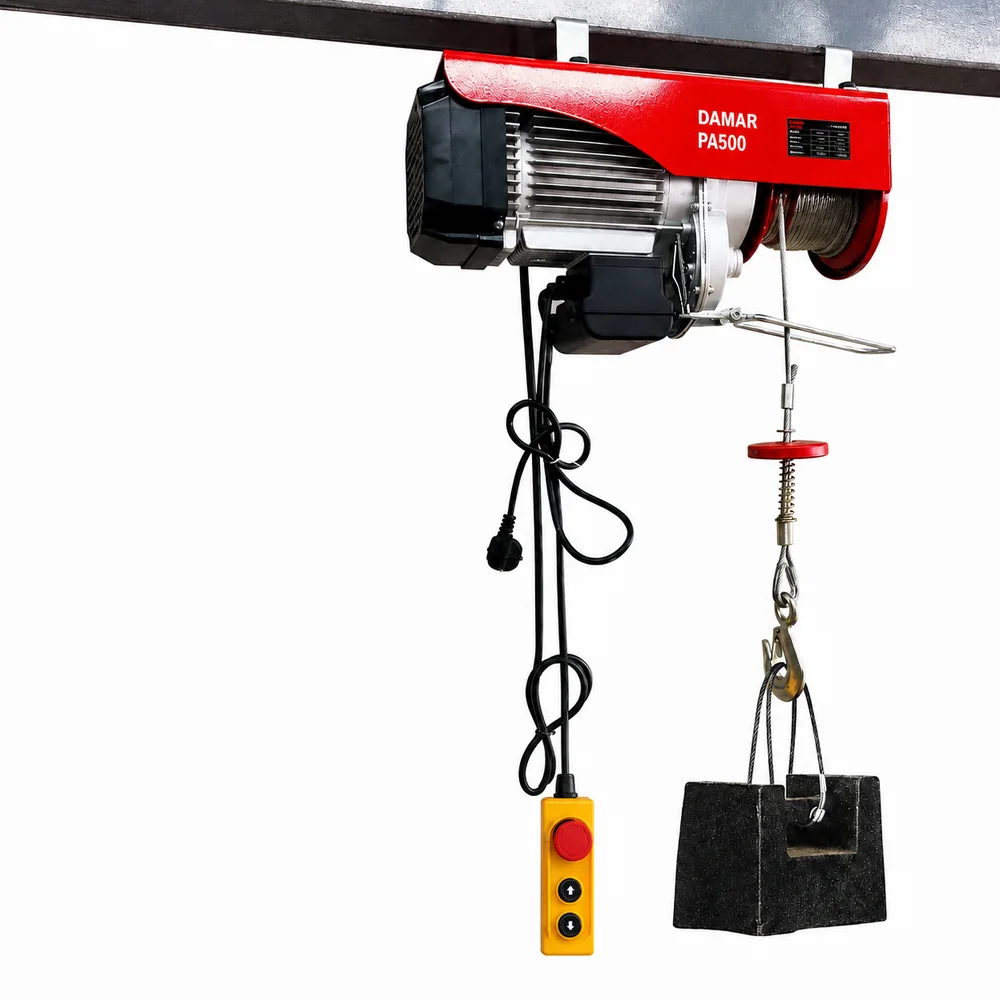

The DAMAR PA 500 mini electric wire-rope hoist is listed for 250 kg with a single hook and 20 m lifting height, or 500 kg with a double hook and 10 m lifting height. The hook arrangement changes both rated load and usable lift. Check the specification table for power supply and lifting speed, and state the intended arrangement when requesting a quotation. Install only on a suitable rated support; not intended for lifting people.
Images are illustrative, and specifications may change. Please obtain written confirmation of all important specifications before ordering. Read the Product & Safety Disclaimer.
Specifications
DAMAR PA 500 Mini Electric Hoist — 20 m
| Specification / Hoist Model | Method of Use | Rated Voltage (V) | Input Power (W) | Rated Lifting Weight (kg) | Lifting Speed (m/min) | Lifting Height (m) | Wire Rope Diameter (mm) | Product Category |
|---|---|---|---|---|---|---|---|---|
| PA 500 - 3HP | Single-hook | 220 / 230 | 900 | 250 | 10 | 20 | 6 | Mini Electric Hoist |
| PA 500 - 3HP | Double-hook | 220 / 230 | 900 | 500 | 5 | 10 | 6 | Mini Electric Hoist |
Supply & certificates
Manufacturer’s test certificates are supplied with all products. Government-approved test house certificates for wire rope slings and chain slings can be arranged at an additional charge. This requirement must be specified when placing the order; requests cannot be accommodated after the slings have been manufactured and dispatched.
We are wholesale distributors supplying across India. Spare parts are available for selected products. We do not provide repairs, servicing or technical assistance.
No warranty or guarantee is offered. This does not exclude rights that apply under applicable law.
