DAMAR PA 1000 Mini Electric Hoist — 20 m
Price on Request
Selected: PA 1000 — 20 MTR
Product Details
- Specification / Hoist Model
- PA 1000 - 5HP
- Method of Use
- 500 kg – Single-hook / 1000 kg – Double-hook
- Rated Voltage (V)
- 220 / 230
- Input Power (W)
- 1350
- Rated Lifting Weight (kg)
- Single-hook: 500 / Double-hook: 1000
- Lifting Speed (m/min)
- Single-hook: 10 / Double-hook: 5
- Lifting Height (m)
- Single-hook: 20 / Double-hook: 10
- Wire Rope Diameter (mm)
- 8
About This Item
- A practical electric lifting solution for everyday workshop and site lifting, combining useful lifting reach with a space-saving format.
- Single-line and double-line operation gives users a valuable choice between faster handling and greater lifting capability for the job at hand.
- A powerful 1,350 W copper-wound motor gives the PA 1000 confident lifting performance and strong thermal durability for regular material-handling work.
- Electric operation reduces repeated manual effort and helps make routine lifting and positioning more efficient for the operator.
- The 8 mm steel wire rope, heat-treated load-bearing parts and generous drum proportions create a heavy, strong assembly with smooth, orderly rope travel.
Product Description

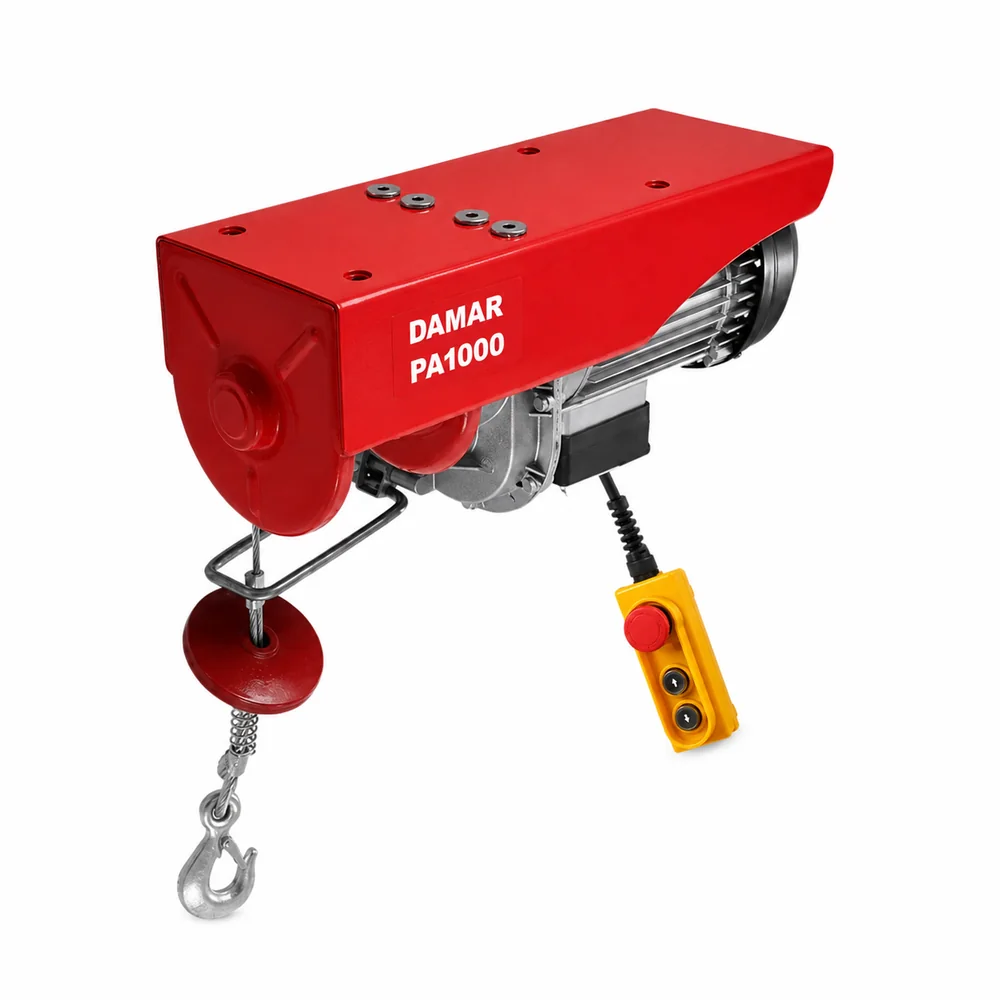

The DAMAR PA 1000 mini electric wire-rope hoist offers listed ratings of 500 kg at 20 m in the single-hook arrangement and 1,000 kg at 10 m in the double-hook arrangement. Choose the arrangement using both the load and required lifting height. Review the table for power supply and speed, and confirm the required setup when ordering. It is for material lifting from a suitable rated support, not for lifting people.
Images are illustrative, and specifications may change. Please obtain written confirmation of all important specifications before ordering. Read the Product & Safety Disclaimer.
Specifications
DAMAR PA 1000 Mini Electric Hoist — 20 m
| Specification / Hoist Model | Method of Use | Rated Voltage (V) | Input Power (W) | Rated Lifting Weight (kg) | Lifting Speed (m/min) | Lifting Height (m) | Wire Rope Diameter (mm) | Product Category |
|---|---|---|---|---|---|---|---|---|
| PA 1000 - 5HP | Single-hook | 220 / 230 | 1350 | 500 | 10 | 20 | 8 | Mini Electric Hoist |
| PA 1000 - 5HP | Double-hook | 220 / 230 | 1350 | 1000 | 5 | 10 | 8 | Mini Electric Hoist |
Supply & certificates
Manufacturer’s test certificates are supplied with all products. Government-approved test house certificates for wire rope slings and chain slings can be arranged at an additional charge. This requirement must be specified when placing the order; requests cannot be accommodated after the slings have been manufactured and dispatched.
We are wholesale distributors supplying across India. Spare parts are available for selected products. We do not provide repairs, servicing or technical assistance.
No warranty or guarantee is offered. This does not exclude rights that apply under applicable law.
