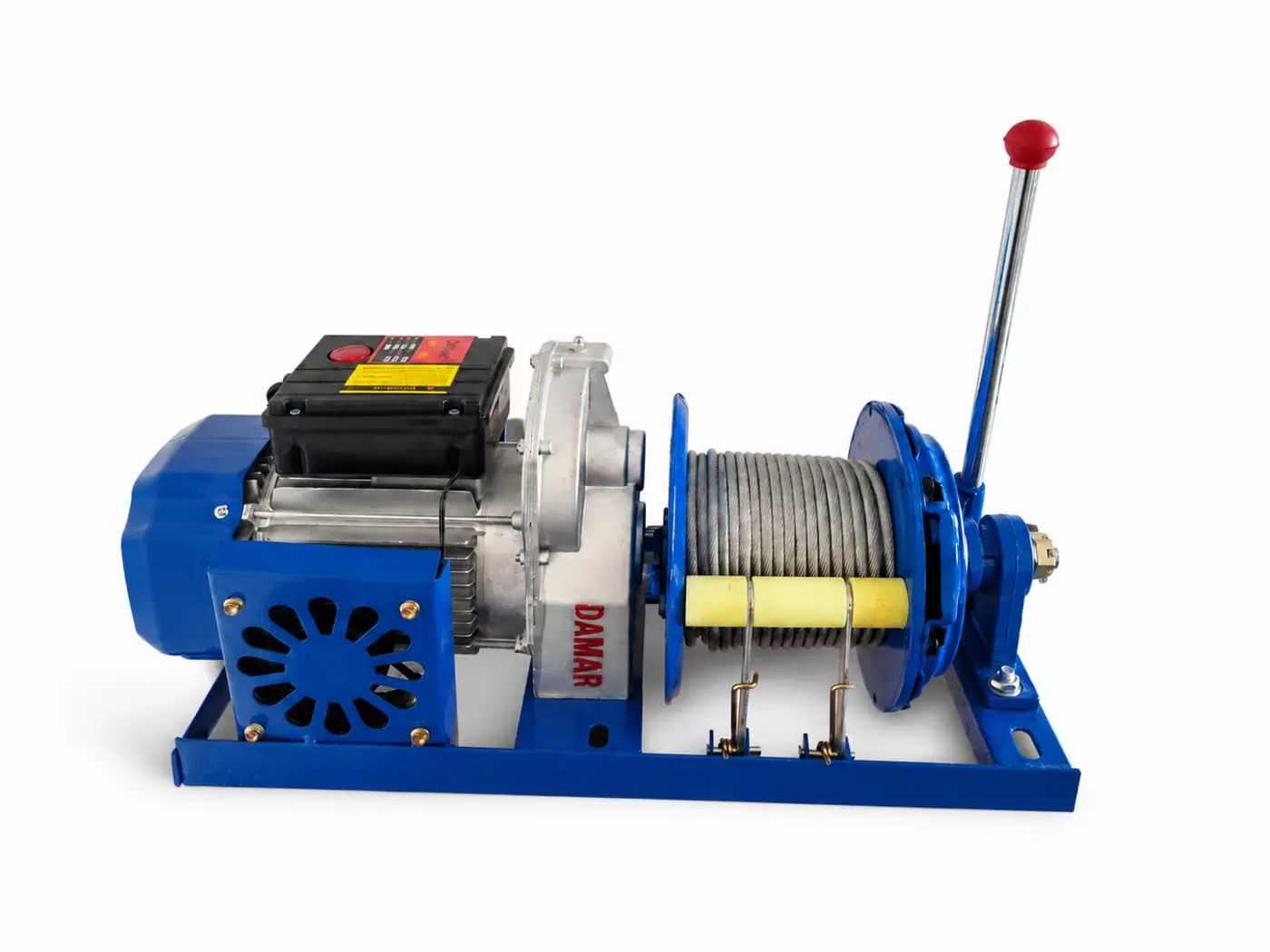

DAMAR Electric Construction Crane Winch — Single Phase
Price on Request
Selected configuration: 1 TON X 40MTR (SINGLE PHASE)
Product Details
- Model
- 1 TON X 40MTR (SINGLE PHASE)
- Single-hook capacity (kg)
- 500
- Double-hook capacity (kg)
- 1000
- Rated voltage (V)
- 110/220/380
- Input power (W)
- 1300 - single phase
- Lifting speed (m/min)
- 6/12
- Lifting height (m)
- 40
About This Item
- Purpose-built for regular construction lifting, this DAMAR winch brings powered material movement to building sites, scaffold work and elevated supply tasks.
- The clutch-style winch format supports quicker rope deployment when unloaded, helping crews prepare for the next lift with less wasted movement.
- The 1,300 W copper-wound motor runs at 2,800 rpm, delivering energetic, responsive performance for repetitive construction lifting.
- Its single-hook and double-hook working arrangements allow the same machine to balance lifting speed, reach and load-handling needs across different jobs.
- A large rope drum, high-grade steel structure and heat-treated load components complement the 6/12 m/min lifting-speed arrangement with the solid build expected on site.
Product Description
The DAMAR single-phase electric construction crane winch is a wire-rope lifting range for construction materials and workshop handling. The listed 40 m and 50 m models each have separate single-hook and double-hook ratings: 500 kg and 1,000 kg respectively. Choose the model using the load, required lifting height and hook arrangement, then review its specification table. State the model, configuration, quantity and delivery location when requesting a wholesale quotation. Installation requires a suitable rated support; this equipment is not for lifting people.
Images are illustrative, and specifications may change. Please obtain written confirmation of all important specifications before ordering. Read the Product & Safety Disclaimer.
Specifications
1 TON X 40MTR (SINGLE PHASE)
| Model | Single-hook capacity (kg) | Double-hook capacity (kg) | Rated voltage (V) | Input power (W) | Lifting speed (m/min) | Lifting height (m) | Motor speed (rpm) |
|---|---|---|---|---|---|---|---|
| 1 TON X 40MTR (SINGLE PHASE) | 500 | 1000 | 110/220/380 | 1300 - single phase | 6/12 | 40 | 2800 |
Supply & certificates
Manufacturer’s test certificates are supplied with all products. Government-approved test house certificates for wire rope slings and chain slings can be arranged at an additional charge. This requirement must be specified when placing the order; requests cannot be accommodated after the slings have been manufactured and dispatched.
We are wholesale distributors supplying across India. Spare parts are available for selected products. We do not provide repairs, servicing or technical assistance.
No warranty or guarantee is offered. This does not exclude rights that apply under applicable law.
