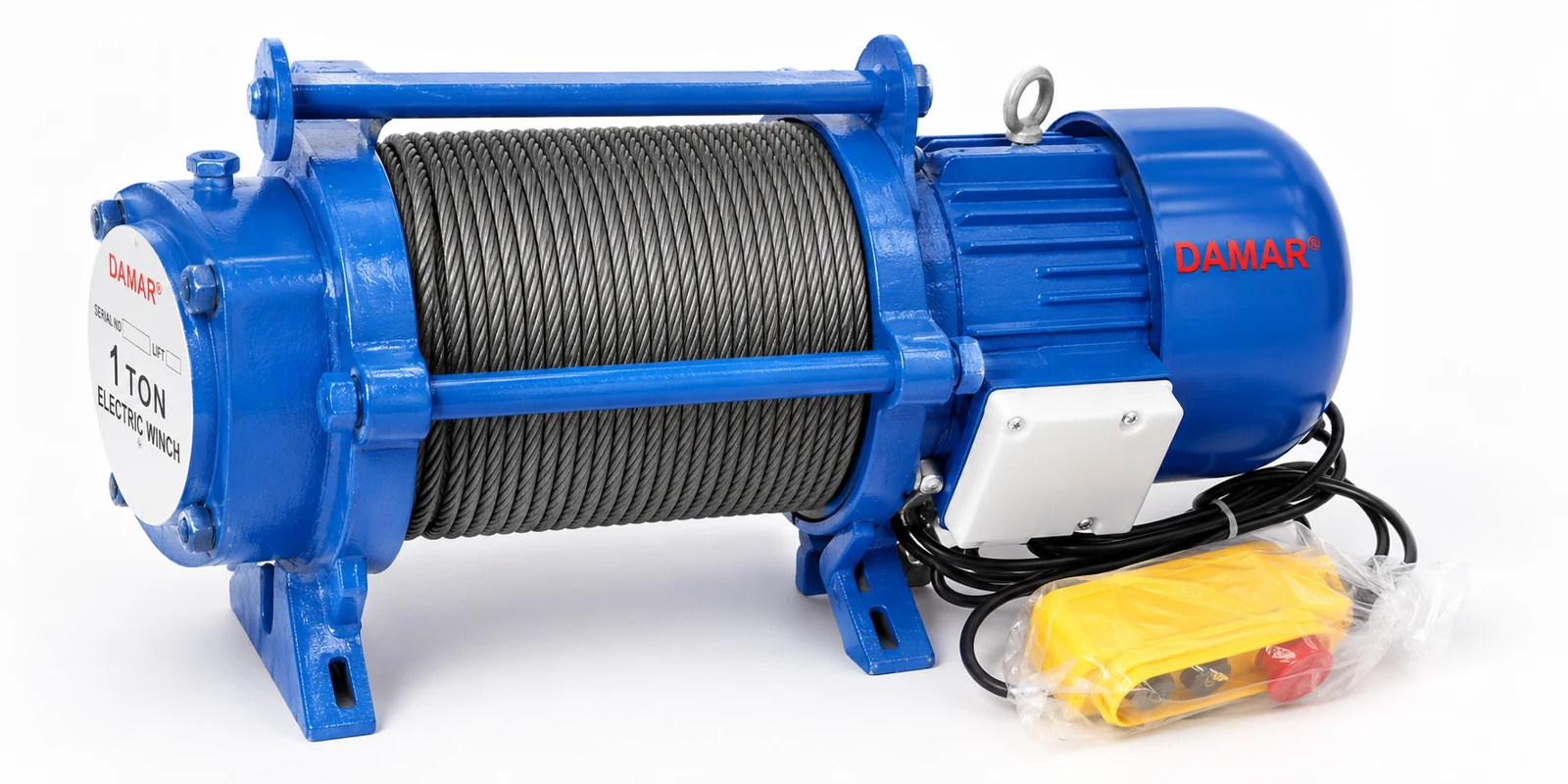

DAMAR KCD Electric Winch — Three Phase
Price on Request
Selected configuration: KCD - 1 TON THREE PHASE
Product Details
- Model
- KCD -1 TON THREE PHASE
- Method of use
- Single-hook / Double-hook
- Rated voltage (V)
- 380
- Input power (W)
- 1500
- Capacity (kg)
- Single-hook: 600 / Double-hook: 1000
- Lifting speed (m/min)
- Single-hook: 20 / Double-hook: 10
About This Item
- A compact powered winch designed for higher-throughput industrial lifting, bringing dependable mechanical advantage to repeated lifting and pulling tasks.
- The KCD drum-and-wire-rope format offers a direct, uncomplicated lifting arrangement that is easy to integrate into suitable frames and site setups.
- Its 1,500 W copper-wound motor and 1,400 rpm motor speed give this 1 Ton model a strong, purposeful drive system for repeated winching work.
- Electric operation helps reduce manual handling effort and supports more consistent work cycles than a hand-operated alternative.
- A generously sized steel rope drum, high-grade steel frame and heat-treated load components create a weighty, durable machine built to handle demanding service.
Product Description
DAMAR three-phase KCD electric winches are listed in 1, 1.5 and 2 ton models for industrial wire-rope handling. Each model has separate single-hook and double-hook specification rows, so compare the actual rated load and speed for your chosen arrangement. This range is distinct from the single-phase KCD models; confirm the electrical supply and installation requirements for the selected model. Send the application, model, hook arrangement, quantity and delivery location for availability and wholesale pricing. Not for lifting people.
Images are illustrative, and specifications may change. Please obtain written confirmation of all important specifications before ordering. Read the Product & Safety Disclaimer.
Specifications
KCD - 1 TON THREE PHASE
| Model | Method of use | Rated voltage (V) | Input power (W) | Capacity (kg) | Lifting speed (m/min) | Motor speed (rpm) |
|---|---|---|---|---|---|---|
| KCD -1 TON THREE PHASE | Single-hook | 380 | 1500 | 600 | 20 | 1400 |
| KCD -1 TON THREE PHASE | Double-hook | 380 | 1500 | 1000 | 10 | 1400 |
Supply & certificates
Manufacturer’s test certificates are supplied with all products. Government-approved test house certificates for wire rope slings and chain slings can be arranged at an additional charge. This requirement must be specified when placing the order; requests cannot be accommodated after the slings have been manufactured and dispatched.
We are wholesale distributors supplying across India. Spare parts are available for selected products. We do not provide repairs, servicing or technical assistance.
No warranty or guarantee is offered. This does not exclude rights that apply under applicable law.
